FILLING SEALING MACHINE

SHINWA Filling and Sealing System

There are separate sealing system specifications for both standard and high-speed types to match various production capacities. Optimum specifications are achieved through customization for specific production purposes.

Features

SHINWA's sealing system guarantees superior sealing performance.

SHINWA's innovative technology has drastically improved the maximum obitainable sealing performance through five major elements: Temperature, Pressure, Time, and increased accuracy in Positioning and Sealing face.

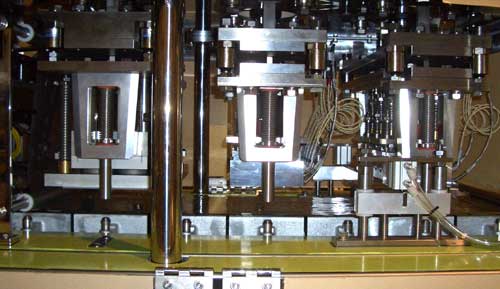

1. Doubleheat seal equipment realized precision sealing.
2. Automatic center adjuster increased positioning accuracy for sealing and trimming.
3. Automatic level adjuster achieved even sealing for neatness.

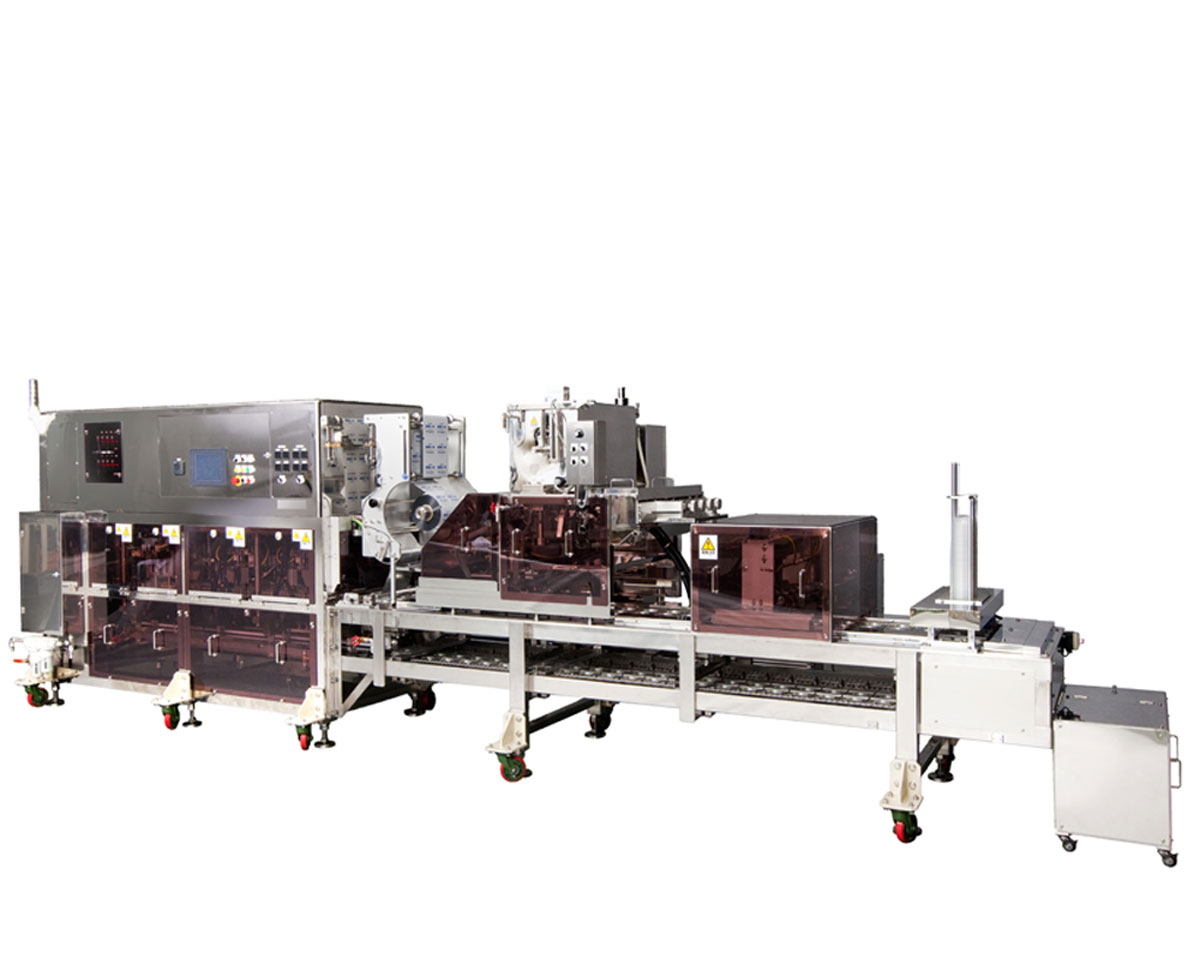

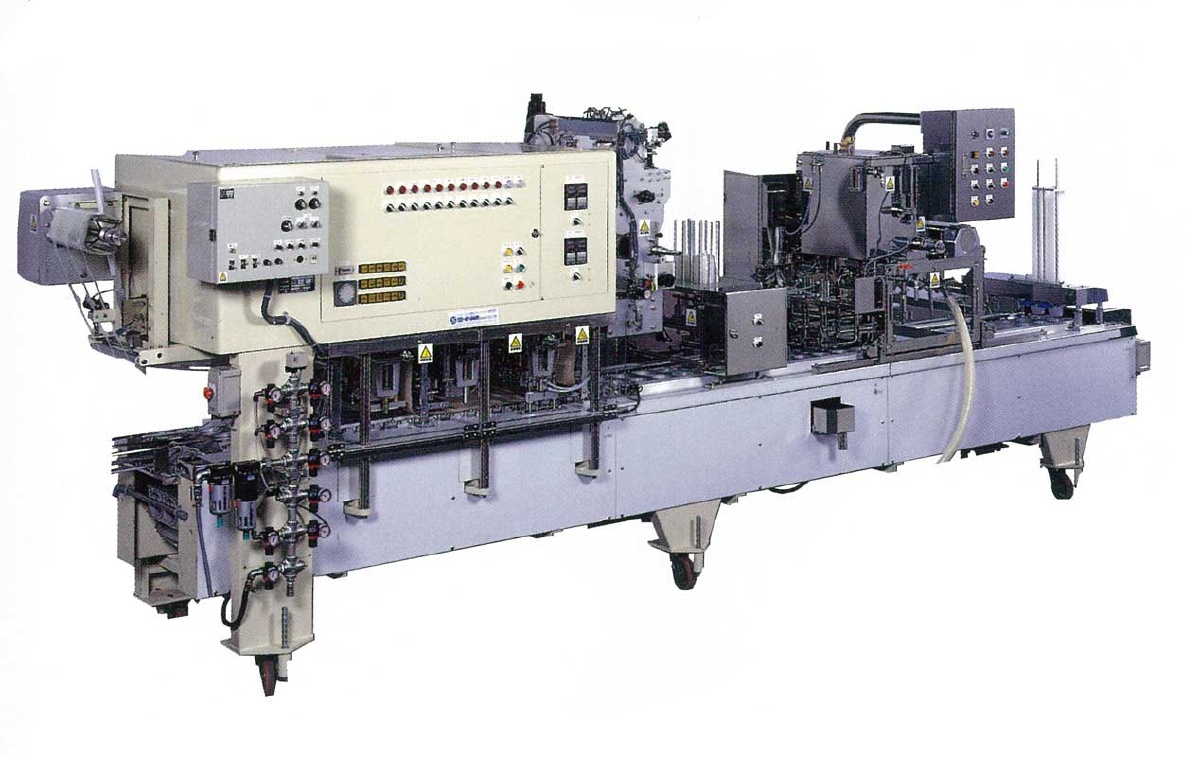

Standard Filling Sealing System

Real Power outstanding Stability and Durability

Standard filling sealing machineSince our foundation, this is our typical filling sealing machine. SHINWA realized, a stability of sealing and of trimming, a stable operation and adurability atthe hign level by our innovation over many years. All of optional equipments are installable and can be connected with a another company's filling system.

Features

●Perfect sealing structure.
●Equipped with an automatic center adjustment mechanism.
●Equipped with an automatic Leveling machanism.
●Available for various container shapes.
●High level of stability, of safety, of reliability, and of durability.
●Numerous optional equipments.

SPEC for reference

Sealing equipmentModel: NWED
Power source: 3-phase 200V or 380V
Compressed air: 0.5-1.0Mpa
Capacity: 1,000 - 6,000 packs/hour

*Specification and capacity can be designed by customer request.
*Filling volume may reflect machine capacity.

ページ上部へ

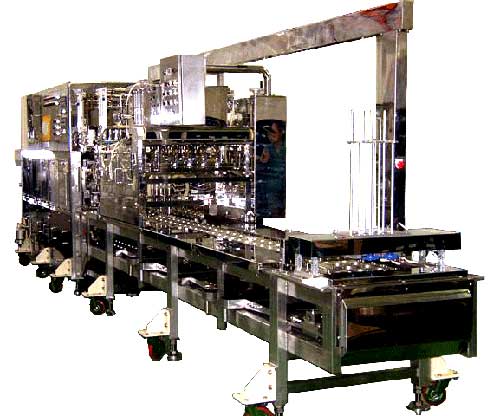

High-speed Filling Sealing System

While maintaining the performance and speed up the machine.

High-speed sealing machineThis achieves high speed with high accuracy filling and sealing functions mounted on a continuous bucket conveyor using the oscillating method. Significant sales for this product have resulted.

Features

●High speed by continuous rotation of bucket conveyor.
●Equipped with automatic center adjuster.
●Equipped with automatic level adjuster.
●No liquid overflow in the case of full filling.
●Maintain sealing time same as standard filling sealing machine by double sealing equipments.
●High efficiency for cleaning and maintenance.

SPEC for reference

Model: KNWED
Power source: 3-phase 200V or 380V
Compressed air: 0.5-1.0Mpa
Capacity: 6,000 - 9,000 packs/hour *Specification and capacity can be designed by customer request.
*Filling volume may reflect machine capacity.

Moving image

ページ上部へ

Semi-automatic sealer

Manual sealer

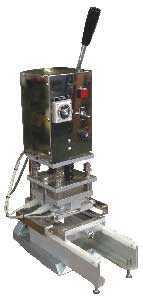

Manual sealer MH-115Model: MH-115
Power source: AC100V

Maximum container size: 115mm X 115mm X H80

Semi-automatic sealer

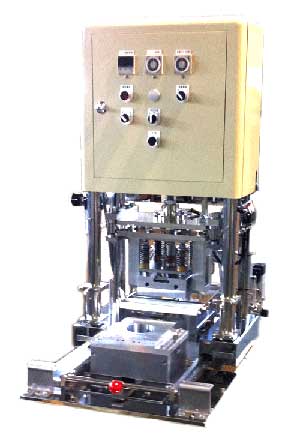

Semi-automatic sealer SN-1Model: SN-1
Power source: 3-phase 200V 1.5kW
Compressed air: 0.5-1.0Mpa 50NL/min
Weight: 80kg

Maximum container size: 180mm X 160mm X H40
*Specification of Max. cotainer size can be designed by customer request

Semi-automatic gas packer

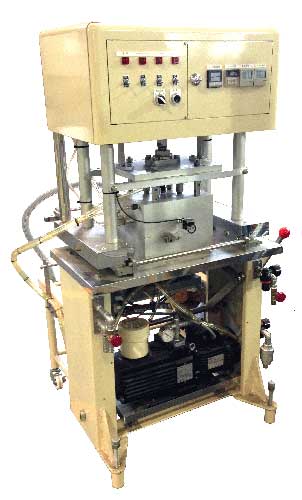

Semi-automatic gas packer N2C-1Model: N2C-1
Power source: 3-phase 200V 3.5kW
Compressed air: 0.5-1.0Mpa 40NL/min
Gas for replacement: 3-10kg/cm2
City water: 5L/min for chamber cooling
Weight: 200kg

Maximum container size: 180mm X 160mm X H60

Semi-automatic sealing trimming machine

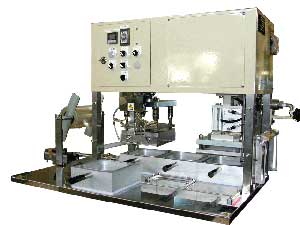

Semi-automatic sealing triming machine SNE-1Model: SNE-1
Power source: 3-phase 200V 1.5kW
Compressed air: 0.5-1.0Mpa 100NL/min
Weight: 170kg

Maximum container size: 180mm X 120mm X H50
